The inspection intelligence
that changes how electronics is made

Delvitech designs and manufactures AI-native AOI and SPI platforms. Neural networks read components accurately and learn the ones they have not seen before. One configurable platform across SPI and AOI. Fewer false calls.
Lower cost of quality. Lower cost of ownership.

About us

Driving the Physical AI revolution

AI-native.
Future-proof by Design.

Horus and Aton were architected around their neural networks from the ground up. Which is why the architecture, not the software version, decides what an inspection system will still be capable of in ten – or more – years.

Neural networks in the inspection cycle

Proprietary neural networks recognise and classify components during board inspection, not only in programming or review.

Hardware, software + AI, engineered as one

Optics, high-bandwidth acquisition, FPGA processing and Neith software operate as one inspection architecture.

One neural concept, many inspection applications

A shared AI-native architecture for SPI, AOI and many more inspection applications, with Training Manager for on-machine learning.

Discover the Technology
The benefits on your line

Inspect Complex Assemblies

High-resolution 2D and true-3D measurement, together with neural networks, inspects virtually every component up to the most complex assemblies, including reflective, tall, fine-pitch and shadowed features.

Lower Cost of Quality

Fewer false calls reduce verification time and operator intervention, helping improve first-pass inspection yield while maintaining high inspection coverage.

One Platform. Less Complexity.

One configurable machine family provides a shared technology and software environment across SPI, AOI and additional inspection applications, simplifying programming, training, service and spares.

Ramp Faster. Keep Your Know-How.

Self-programming and Training Manager help your team ramp up new products faster and adapt inspection as production evolves. The know-how built stays in-house, reusable across products, lines and sites.

The technology that makes it possible

AOI, SPI and More. One Configurable Platform.

Horus performs 3D SPI, pre-reflow AOI, post-reflow AOI and additional inspection applications on the same configurable machine.

25 MP True-3D Optics

A patented 25 MP telecentric imaging system with four RGB projectors and multi-level RGBW lighting acquires both high-resolution 2D images and true-3D data.

Neural Inspection Engine

Proprietary neural networks recognise and classify board features on the machine, in real time, during the live inspection cycle.

Neith Software Platform

Neith unifies AOI and SPI programming, data and workflows through browser-based microservices and an Ubuntu/Linux foundation built for fast AI and machine control.

AI Programming and Learning

Self-programming accelerates component recognition and setup; Training Manager enables neural-network training directly on the machine using production images.

Four solutions.
One Inspection Intelligence.

Scroll horizontally

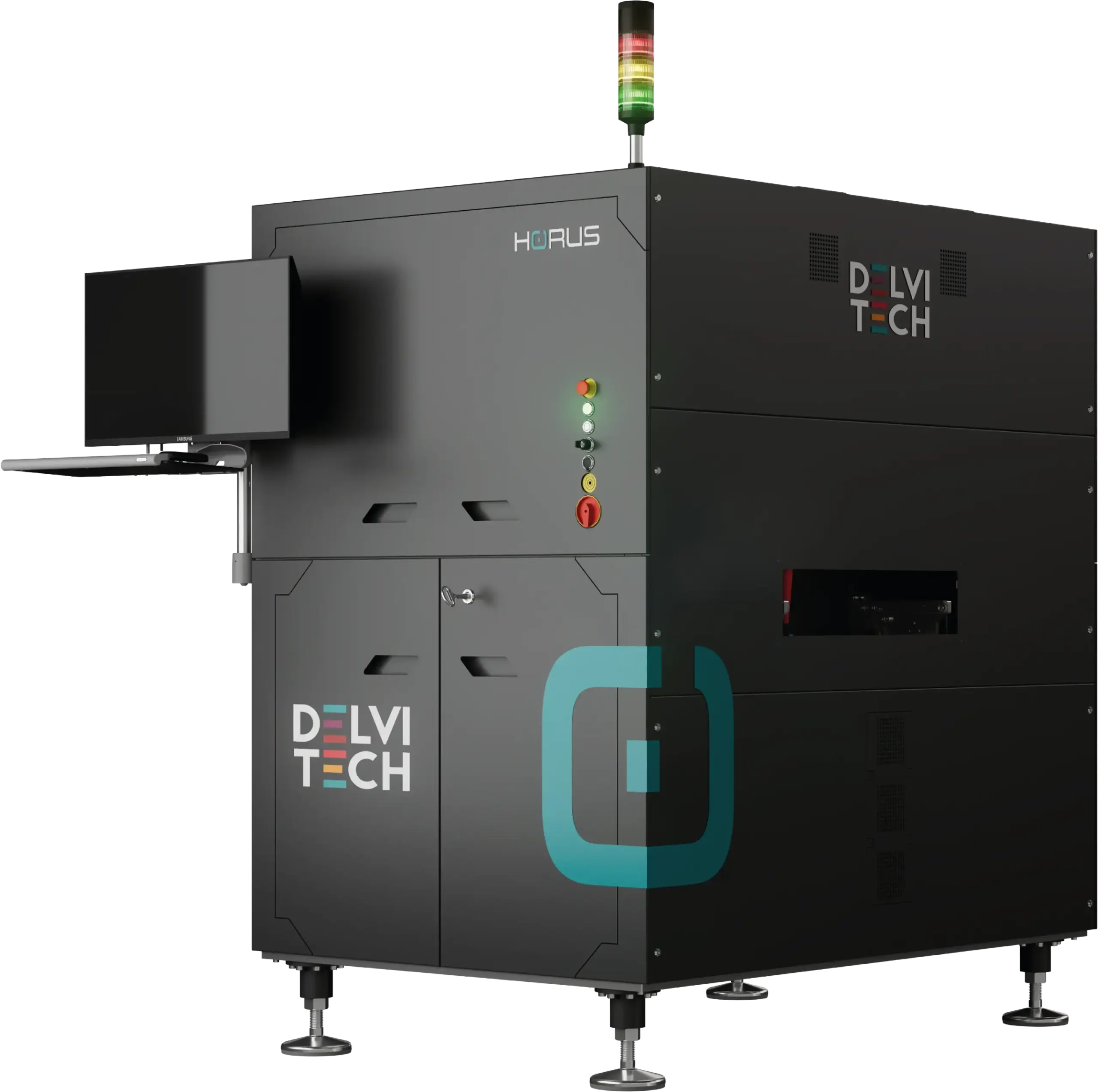

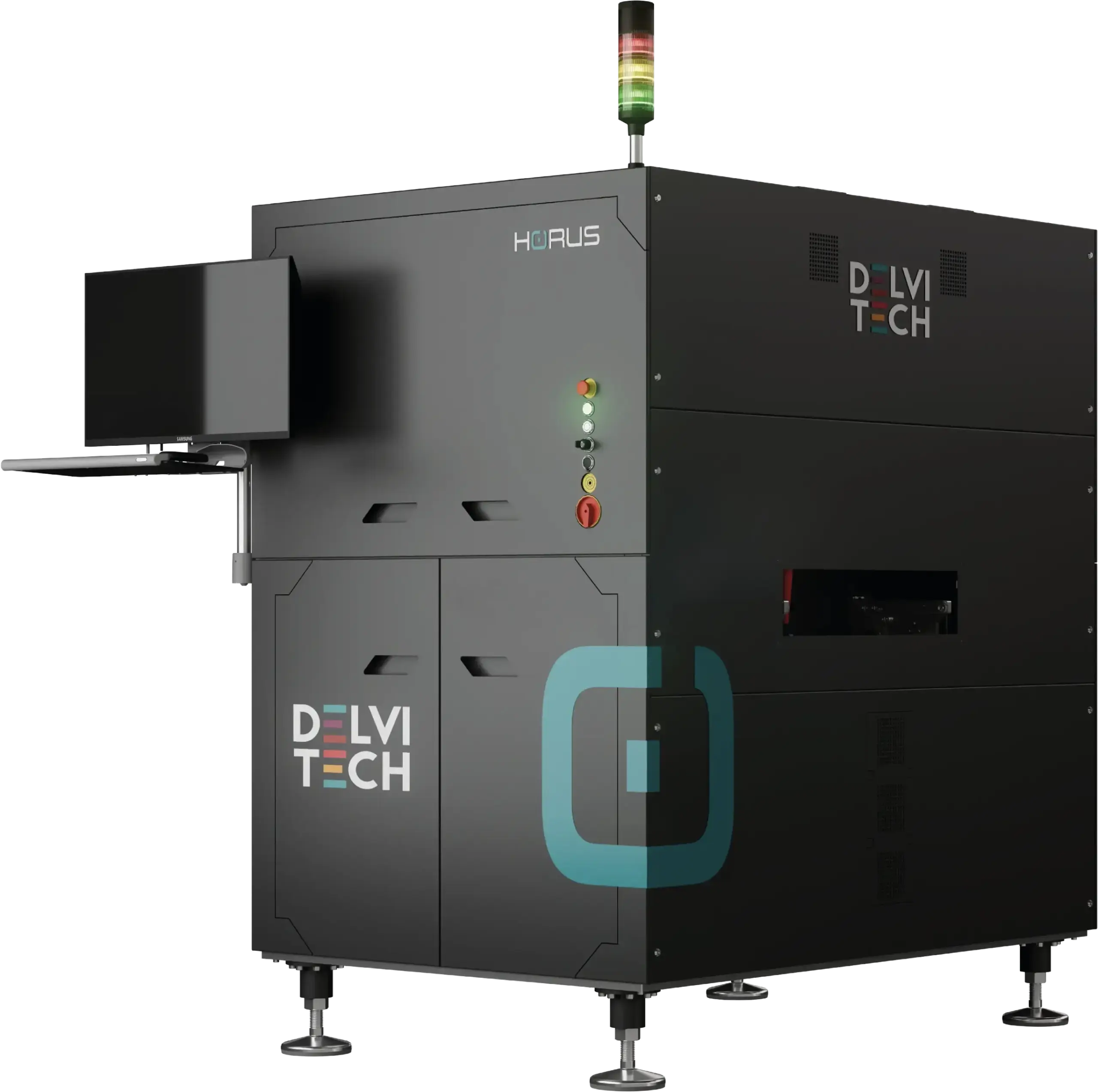

Horus inspection platform, side view
Discover Horus

Horus

One AI-native platform.
Every PCB inspection stage.

AI 3D AOI + SPI for PCB inspection

Three inspection stages. One platform to learn.

3D solder paste inspection, pre-reflow AOI and post-reflow AOI with one software environment. Common spares, common maintenance, one operator training across the line.

True 3D. Patented optical head.

A 25 MP telecentric top camera, four RGB projectors and multi-level RGBW lighting, with optional side cameras. Built for reflective metals, shadowed zones, tall connectors and fine pitch.

Full 3D at full speed

A 50 x 50 mm field of view in 0.6 s/FoV, 2 µm height resolution and up to 30 mm height range, OCR included.

Training Manager. Your AOI learns. You produce.

Train the system, keep the know-how. Your team teaches the neural networks a new component on the platform, on real production images, extending recognition beyond initial training while preserving existing knowledge.

Configurable by design

Single Lane or ITU (Integrated Tilt Unit) to inspect both board sides inside the same compact Horus.

Horus MIDI inspection platform, side view
Discover Horus MIDI

Horus MIDI

Wider boards.
Higher throughput.

AI 3D AOI + SPI for wider boards and dual-lane inspection

The full Horus, scaled to your throughput

The same optics, neural engine and Neith software as Horus, for boards up to 560 x 715 mm and 15 kg, in the same 1,090 mm width.

Three inspection stages. One platform to learn.

3D solder paste inspection, pre-reflow AOI and post-reflow AOI with one software environment. Common spares, common maintenance, one operator training across the line.

True 3D. Patented optical head.

A 25 MP telecentric top camera, four RGB projectors and multi-level RGBW lighting, with optional side cameras. Built for reflective metals, shadowed zones, tall connectors and fine pitch.

Training Manager. Your AOI learns. You produce.

Train the system, keep the know-how. Your team teaches the neural networks a new component on the platform, on real production images, extending recognition beyond initial training while preserving existing knowledge.

Configurable by design

Single Lane, Dual Lane with two independent 340 mm lanes, or ITU (Integrated Tilt Unit) to inspect both board sides. Options: Triple Conveyor (Single Lane only) and Long Board up to 815 mm (not available for ITU).

Horus MAX inspection platform, side view
Discover Horus MAX

Horus MAX

Bigger boards.
Same intelligence.

AI 3D AOI + SPI for the largest boards

Bigger boards, same 3D at full speed

Horus MAX inspects a 50 x 50 mm field of view in 0.6 s/FoV, exactly as Horus does, over a working area sized for boards up to 815 x 715 mm.

Built for heavy, thick assemblies

Boards up to 15 kg and 10 mm thick, with 60 mm clearance above and below for power, industrial and server boards that outgrow standard formats.

Three inspection stages. One platform to learn.

3D solder paste inspection, pre-reflow AOI and post-reflow AOI with one software environment. Common spares, common maintenance, one operator training across the line.

True 3D. Patented optical head.

A 25 MP telecentric top camera, four RGB projectors and multi-level RGBW lighting, with optional side cameras. Built for reflective metals, shadowed zones, tall connectors and fine pitch.

Training Manager. Your AOI learns. You produce.

Train the system, keep the know-how. Your team teaches the neural networks a new component on the platform, on real production images, extending recognition beyond initial training while preserving existing knowledge.

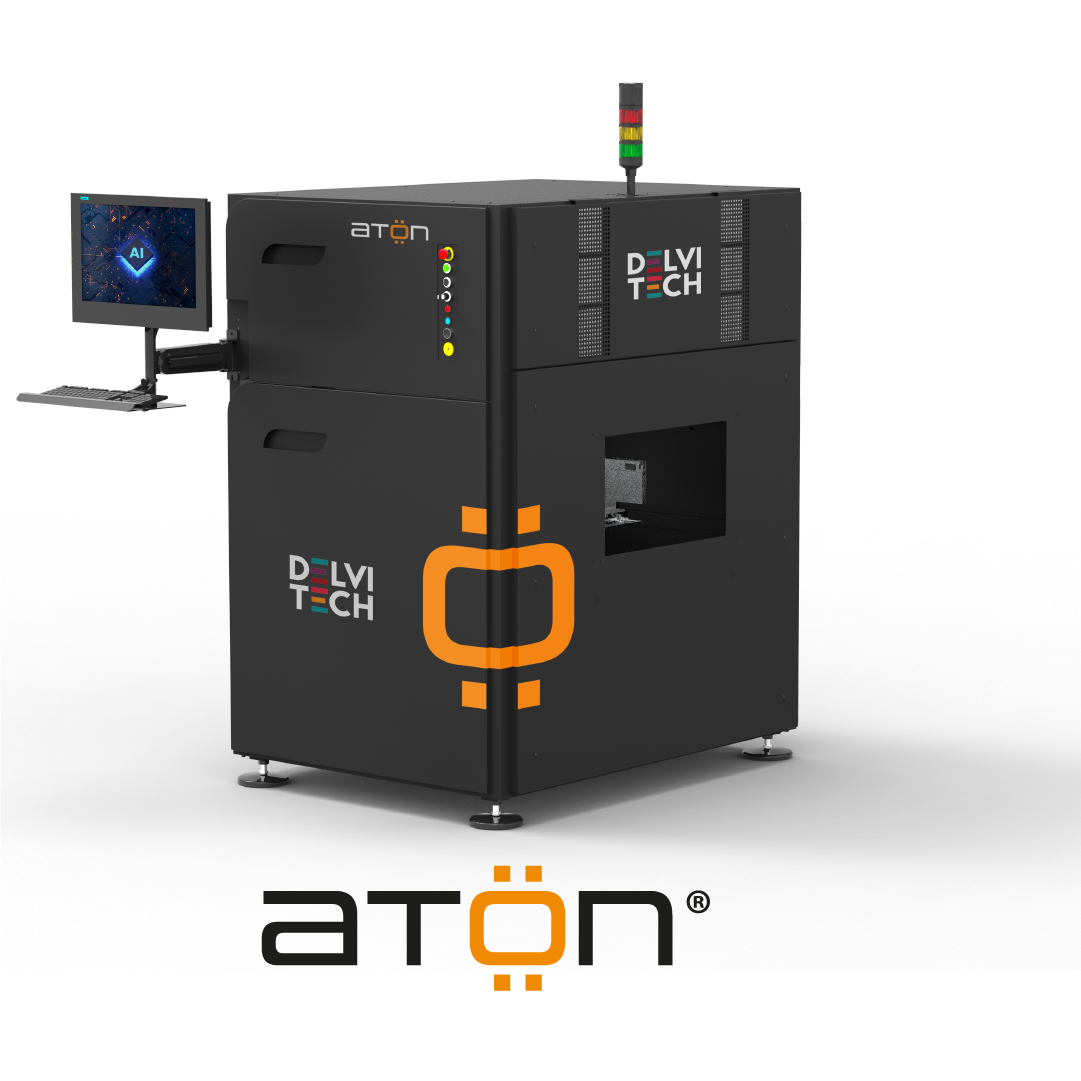

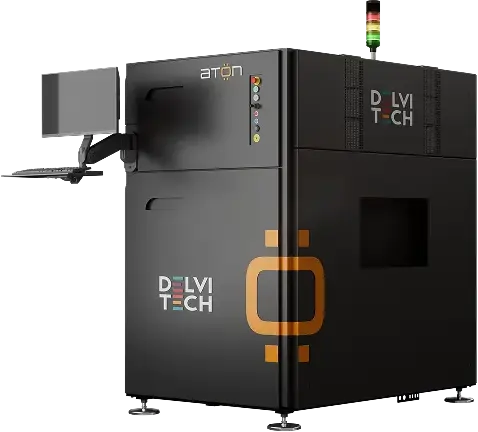

Aton inspection platform, side view
Discover Aton

Aton

Tall components.
One powerful system.

AI 3D post-reflow AOI.
Multi-level inspection up to 80 mm

Multi-level inspection

Dynamic focus across an 80 mm range, with 120 mm top clearance and 140 mm bottom clearance: boards with components at very different heights are inspected in one pass.

Built for the boards that break other systems

Large, heavy, densely populated or carrying tall connectors: power electronics, automotive and industrial control. Warp compensation of ±5 mm keeps the inspection on target.

The same intelligence, the same software

Aton runs Neith and the same neural networks as Horus: one programming environment and one training programme across the line.

Post-reflow, uncompromised

AI 3D post-reflow AOI for SMT and THT, in 0.8 s per 50 x 50 mm field of view.

Pioneering AI Expertise. Swiss Engineering.

AI pioneer Prof. Jürgen Schmidhuber sits on Delvitech’s Board. A large R&D and Application Engineering team advances proprietary AI and patented optics, in collaboration with leading Swiss AI research institutes.

Global Reach. Local Execution.

Global subsidiaries, regional teams and partners, and production plants in Switzerland and India support customers from application engineering through service.

Proven Across Quality-Critical Industries

Delvitech supports quality-critical production across Automotive and EV, Electronics Manufacturing Services (EMS), Industrial and Power Electronics, Aerospace and Defence, Medical Devices, Telecommunications, AI Computing and Data Centres and Consumer Electronics.

Series B Funded. Built to Scale.

Series B funding and long-term institutional investors support continued investment in technology, talent, global operations and manufacturing capacity.

Recognised. Certified. Institutionally Connected.

Certifications, industry recognition and relationships with institutions such as Switzerland Global Enterprise strengthen Delvitech’s credibility and international growth.

Why you can rely on it.

Horus inspection platform, detail

Swiss Precision Thinking

Built in Switzerland. Present where you manufacture.

Map of Europe with Delvitech locations
Map of the Americas with Delvitech locations

HEADQUARTERS

Mendrisio (Switzerland)

SUBSIDIARIES

USA · Mexico · Germany · India

DISTRIBUTION & SERVICE PARTNERS

Europe · South Korea · Australia

MANUFACTURING

Switzerland · India

DEMO CENTRES

Mendrisio · Southlake · Nuremberg · Bangalore

Latest Updates

News

FAQ

How does Delvitech’s AI work during inspection?

Proprietary neural networks recognise and classify board features on the machine, in real time, during the live inspection cycle.

Which inspection stages can Horus perform?

Horus performs 3D solder paste inspection, pre-reflow AOI and post-reflow AOI on the same configurable machine.

What types of components and features can the systems inspect?

The systems are designed to inspect complex assemblies, including reflective, tall, fine-pitch and shadowed features.

What board size can Horus MAX inspect?

Horus MAX is designed for boards up to 815 x 715 mm and 15 kg.
